How to Arrange a Sectional Sofa in a Living Room

To arrange a sectional sofa in a living room, lock the exact configuration, mark its complete occupied outline, draw the room’s moving operations and main route, then test a wall-backed position and—when the room permits—a floating position. Keep the version that serves one primary activity without blocking doors, windows, storage, adjacent zones or seat access. Add the coffee table, rug and lighting only after the sectional and route work together. A “longest wall” rule alone cannot account for a sectional’s return, open side or multiple seating directions.

Record the exact sectional before moving it

Start with the exact completed configuration, not the category name. Record overall occupied width, maximum depth and height at stable outside endpoints. Add the direction of every return or chaise, any separate ottoman, the number of modules, and any stated placement or configuration restriction. A product page that lists several arrangements does not mean every diagram works with every order or variant.

If the sectional is already in the room, measure the finished outside outline rather than one seat module. If it is still a shortlist item, use the exact current product dimensions and draw the outline at full scale with painter’s tape or paper. Mark an L shape as an L and a U shape as a U when the detailed dimensions are available; a bounding rectangle is useful for the first screen but can hide the open area inside the shape.

This article uses only the occupied-envelope inputs needed for placement. For full endpoint, delivery and route work, use the sectional measurement guide. Stop before changing, separating or reconnecting modules unless the exact instructions confirm that action.

Draw the room as it operates

Measure the room while its doors, drawers, curtains and dining chairs are in use. An empty rectangle misses the space required to open a balcony door, pull out a dining chair, reach a cabinet, cross to the kitchen or clean around a window treatment.

Put five records on the same plan:

• Fixed elements: walls, openings, windows, vents, outlets, fireplace, media wall and immovable storage.
• Moving operations: door swings, drawers, curtains, recliners, dining-chair pull-out and any route used by a pet gate or robot vacuum.
• Main route: the path from the primary entrance to the next daily destination, drawn as a continuous zone rather than a single line.
• Sectional zone: the exact completed footprint plus any stated wall access or placement need.
• Companion zones: the real footprints and access space for a table, rug, lamp, side table, chair or console.

The operating-room map is Monvane editorial guidance, not a universal interior-design or accessibility standard. Monvane’s current Sofa Sizes & Room Fit Guide uses at least 30 inches for a main walkway, 16–18 inches between the seating edge and coffee table, and 2–6 inches behind a sofa when the layout allows. Treat those as early planning targets—not building-code or accessibility requirements. Your doors, mobility needs, household traffic and local requirements may need more.

Give the sectional one room job and one anchor edge

Give the sectional one primary job before choosing a wall. It may organize TV viewing, face a fireplace, support conversation, divide a living-and-dining room, or make one reading and lounging zone. Secondary activities can still fit, but one job must break ties between competing positions.

The anchor edge is the sectional edge whose position controls the plan: often the long back run, sometimes one side near a wall, and occasionally the back used as an open-plan boundary. The receiving edge is the side people first approach. It should make an available seat easy to reach without sending people around a return or through the viewing area.

These are starting tests, not winners. For detailed long-run and short-return orientation, use the L-shaped arrangement guide. The current page stays focused on the whole-room decision that every sectional shape must pass.

Compare wall-backed and floating plans

A wall-backed sectional can preserve a broad cross-room field when the room has one clear focal wall and limited depth. It can also reduce the number of exposed circulation edges. It still fails if a return blocks the approach, a back covers a vent or curtain, or the seating view requires an uncomfortable turn.

A floating sectional earns its position only when the back creates a useful boundary. In an open floor plan, that boundary might separate living from dining while the receiving edge faces the main entrance. Check the view from behind, the path around both exposed ends, dining-chair pull-out, nearby drawers and the cross-room route. A floating layout that merely centers the sofa but breaks those operations has not improved the room.

The wall-versus-floating comparison is a planning exercise, not proof that either position works in every home. Keep the version that improves the room's actual use, not the one that merely looks more symmetrical.

Arrange the sectional in seven measured steps

Use one measured sequence instead of nudging the sectional until it looks centered. Perform the first five steps with tape or a scaled plan before physically moving an existing sectional.

Map and place

1. Lock the configuration. Save the exact product or current room measurements, orientation and any supported modular arrangement. Do not plan with a different variant’s diagram.
2. Mark the operating room. Add fixed elements, moving operations, the main route and adjacent-zone operations to one measured drawing.
3. Choose the room job. Name the primary focal use and the receiving edge before deciding whether the back belongs on a wall or in the open room.
4. Tape the sectional, route and table as three different zones. Do not treat the open area inside an L or U as automatically available until its exact inner dimensions are known.
5. Place the anchor edge. Test the wall-backed plan first when perimeter placement is realistic, then test a floating plan when dividing an open space has a clear purpose.

Complete and rehearse

6. Add companion furniture one item at a time. Mark the exact table, rug, lamp or chair footprint and retain it only when access and the main route still work.
7. Run the occupied-room test. Sit, stand, cross the room, open everything and use adjacent furniture as the household normally does. Record keep, adjust or change-shape.

This seven-step sequence is a household placement exercise; it does not authorize detaching, reconnecting or reconfiguring an exact sectional. If physical repositioning is required, follow the exact manufacturer guidance and use an appropriate moving plan rather than dragging an unknown assembly.

Add tables, rug and lighting after the position passes

The sectional is the anchor; every added object must justify the floor it consumes. Start with the surface people need most. A small side table can be more useful than a centered coffee table when the U opening or main route is narrow. If a coffee table is used, measure the exact table and test Monvane’s 16–18-inch planning gap from the seating edge around every side people must enter—not just at the middle seat.

Choose the rug from the finished furniture relationship, not from the room label. It may unify the complete seating group or support only the front relationship, but its exposed edges should not create a trip-prone path or prevent chairs and tables from sitting as intended. The article does not prescribe a universal rug size because sectional footprints and rug strategies vary.

Add lighting last enough that the sectional position is stable but early enough to test outlets, switches, cords, glare and reach from real seats. A floor lamp that improves visual balance but sends a cord through the main route fails the arrangement. These finishing choices are editorial recommendations; exact furniture dimensions, electrical instructions and household access needs control.

Work a 16-by-14-foot U-shaped example

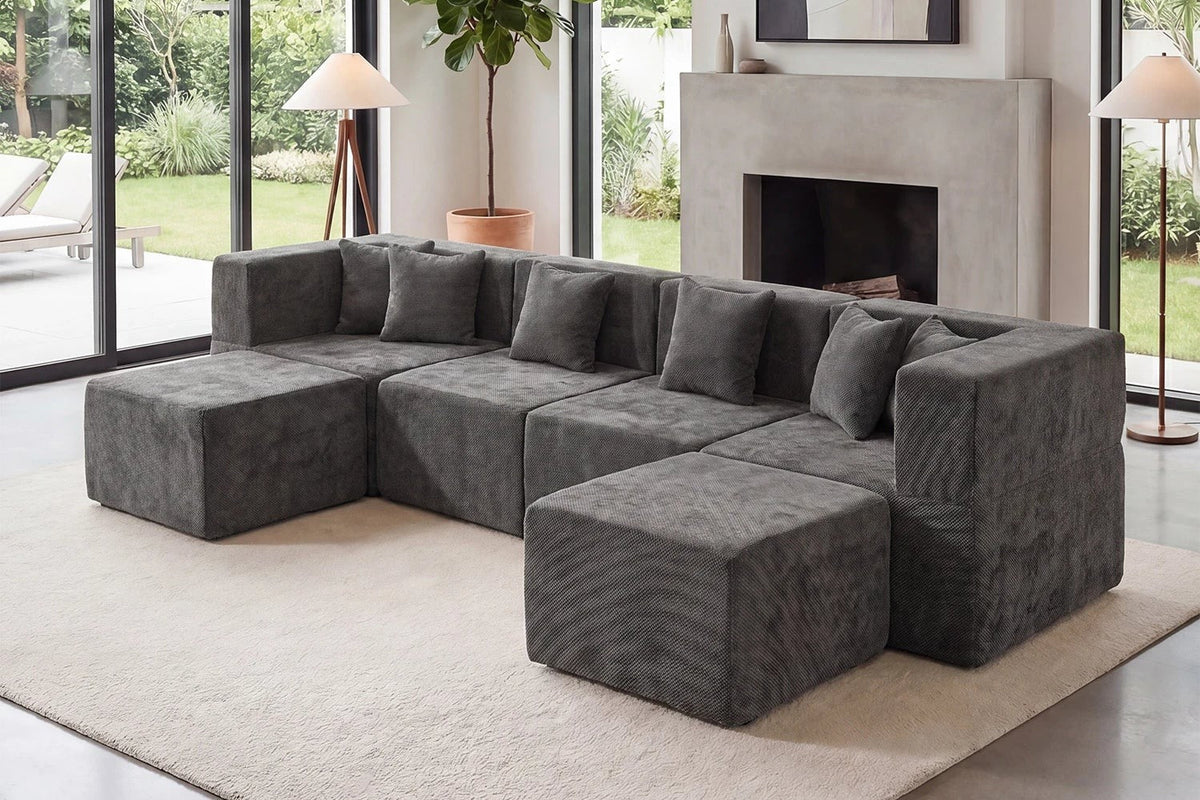

The current Monvane U-Shaped Modular Couch page publishes outside dimensions of 130 inches wide, 65 inches deep and 30 inches high. It also lists seven flexible configurations and three-package delivery. Use those facts only for that current exact product; the page does not publish the inner opening dimensions needed to approve a particular coffee table.

The product photograph shows visible shape and room context, not calibrated room dimensions or clearance.

The worked example is hypothetical; only the sectional's 130-by-65-inch outside dimensions come from the current product page. Assume a rectangular room 16 feet wide by 14 feet deep, or 192 by 168 inches. Center the 130-inch sectional on the 192-inch wall:

(192 − 130) ÷ 2 = 31 inches on each side.

For a first depth screen, assume a 6-inch gap behind the sectional, its 65-inch maximum depth, a 16-inch media-console zone on the opposite wall and Monvane’s 30-inch main-route target:

168 − 6 − 65 − 16 − 30 = 51 inches of remaining depth.

The centered footprint leaves 31 inches on each side. That narrowly clears the 30-inch early planning target before baseboards, curtains, doors or household-specific needs are deducted. The 51-inch remaining depth is not a coffee-table recommendation; it is the unassigned zone after the declared assumptions. Measure the actual U opening, include every obstruction and test the route before keeping the plan.

Rehearse the room at peak use

A layout is complete only when the room works with people in it. Rehearse the busiest normal period rather than one quiet photograph. Have regular users enter from the main door, choose seats, stand, cross to the next room, use the table and reach switches or storage. Open doors, drawers and curtains fully. Pull out dining chairs if the living room shares an open plan.

Then check the sectional itself as a group:

• Can every regular seat be reached without stepping over a return or asking another person to move?
• Does the primary focal use work from the seats that will actually be occupied?
• Can someone leave the room without cutting through the main viewing or conversation zone?
• Do table access, charging, lighting and cleaning still work?
• Does the view from the entrance and, for a floating plan, from behind look intentional without hiding an operational failure?

The occupied-room test evaluates household use only; it is not a building-code, egress, accessibility or safety inspection. Add any professional or local requirements that apply to the home and users.

Recover when the first arrangement fails

Do not shrink the main route to rescue a preferred picture. Do not remove a module or flip a chaise unless the exact product documentation supports that configuration. When every supported position collides with a hard room operation, the arrangement problem has become a product-shape decision.

The finished arrangement is the one the household can repeat: exact sectional, clear receiving edge, useful focal relationship, protected route and companion furniture that earns its space. Compare the current L-shaped options and current U-shaped options only after the room map shows which occupied shape the living room can operate.

Sources and scope: The current Monvane Sofa Sizes & Room Fit Guide and U-Shaped Modular Couch page were checked August 18, 2026. The operating-room map, wall-versus-floating comparison, seven-step sequence, hypothetical room and recovery table are Monvane editorial planning tools. Current public Monvane pages for L-shaped arrangement, reversible-chaise setup, small-room sofa placement and sectional measurement were reviewed to keep their specialized tasks separate from this shape-neutral procedure.
